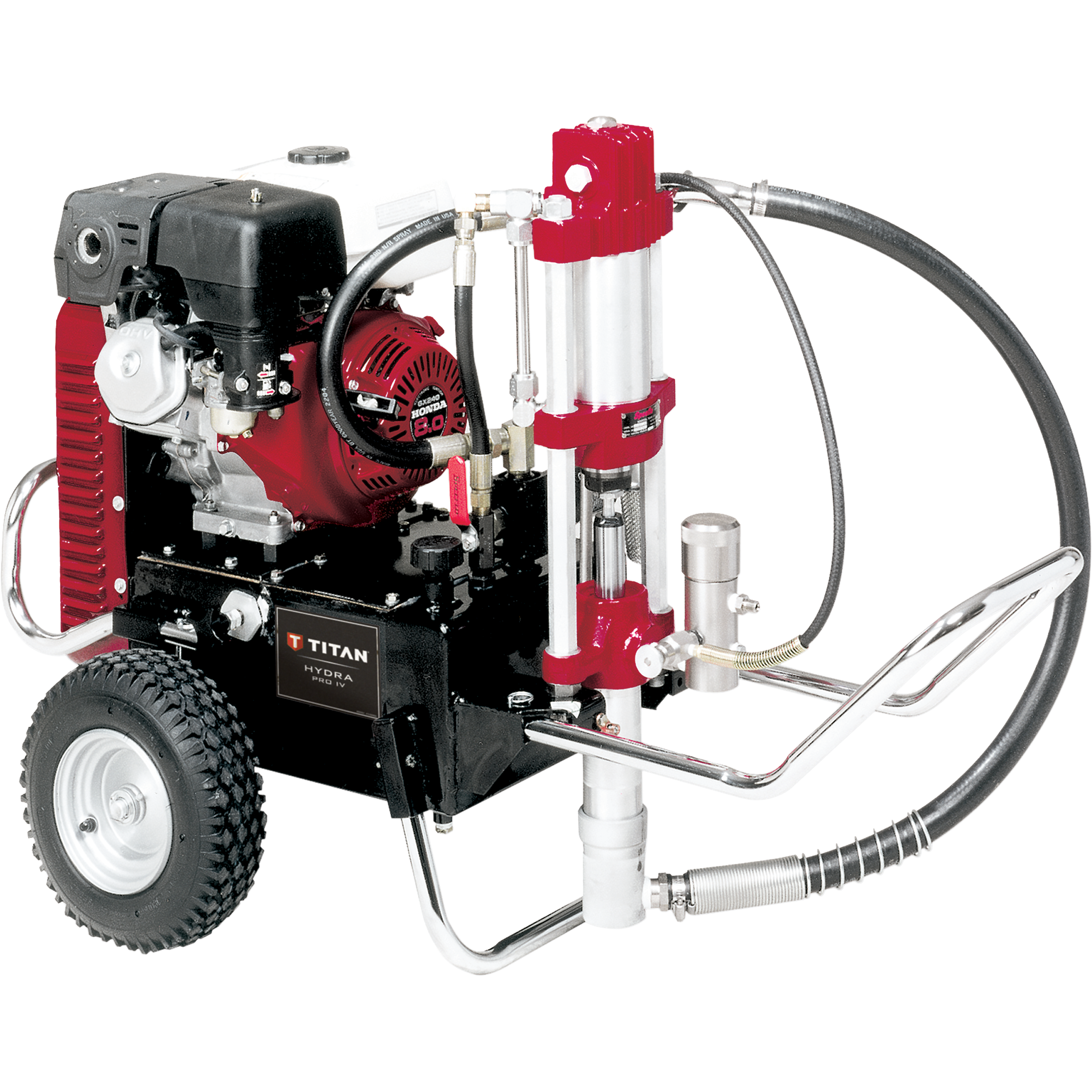

Titan Hydra™ Pro IV Hydraulic Airless Spray

433-820

  • Sale
  • Regular price $6,236.00
Free Shipping!

Checkout Secure

Hydra™ Pro IV Hydraulic Airless Spray

The workhorse hydraulic sprayer for serious applications. This high production sprayer pumps all architectural coatings, drywall mud epoxies, mastics and elastomeric roof coatings. HYDRAS™ are designed to spray most ultra-heavy coatings on commercial, industrial and roofing projects.

Sprayer Features

  • Built for the really tough jobs!
  • Longest slowest stroke for maximum life
  • Ultra-high capacity hydraulic system keeps Its cool in the harshest conditions
  • Hand-tight cylinder and foot valve for quick and easy maintenance
  • Severe service 500 hard chrome piston and cylinder for extra long life
  • Spring-loaded self-adjusting UHMWPE packing system eliminates premature wear from over-tightening

Sprayer Specifications

  • Gas Engine: Honda® 270 cc OHV
  • Max Tip Size: 1 gun - .050", 2 guns - .035", 3 guns - .029", 4 guns - .025", 5 guns - .021"
  • Max Delivery: 2.5 GPM
  • Max Operation Pressure: 3.300 PSI
  • Cycles Per Gallon: 20
  • Paint Outlet Filter: 50 mesh
  • Filter Area: 18 in sq.

Click Here To Download The Hydra™ Pro IV User Manual
